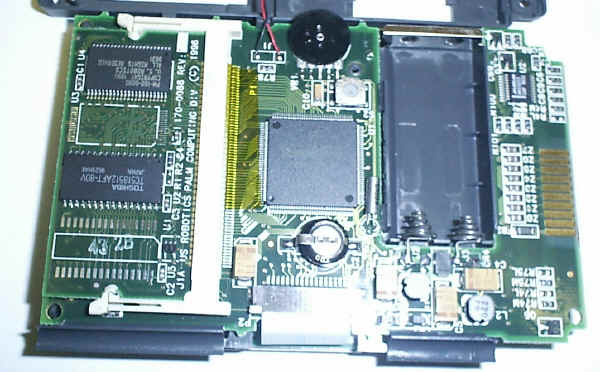

Motorola 'DragonBall' processor in centre, mini SIMM card on left containing RAM and program ROM. Power supply components at bottom right.


Not much to see here. Array of gold dots to right are test pads for factory use.

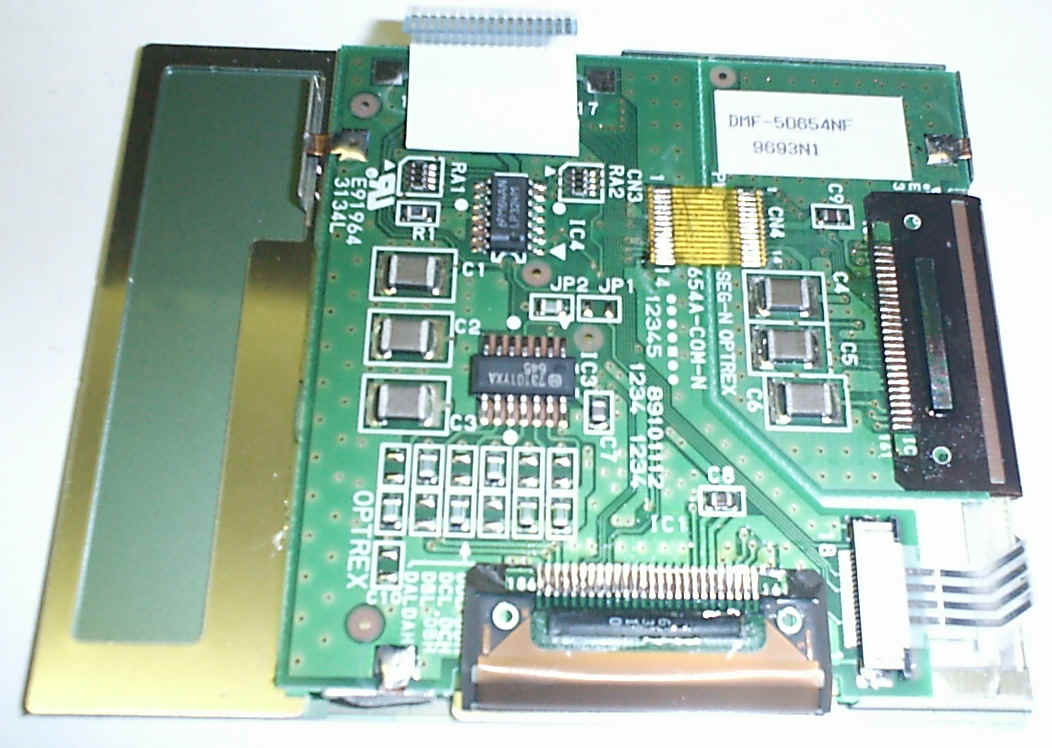

00106029.JPG (319482 bytes)Rear of display. Flexible cables from display glass bottom and right, containing inbuilt driver chips (long thin rectangles).
